3XM Gen2
Fleet Canopy

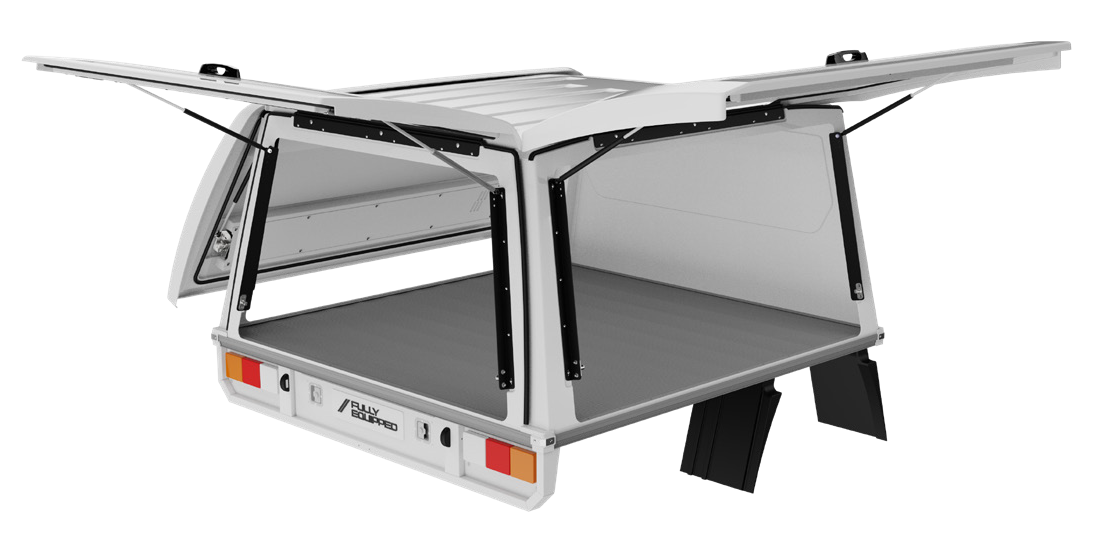

The light and extremely rigid fibreglass 3XM Gen2 Fleet Canopy combines advanced composite construction and integrated vehicle security systems into one highly capable solution. The unique clam shell architecture and adaptable design make it ideal for superior usability and long-term asset value.

Peace Of Mind Security And Electrical Integration

Central locking

Integrated into the vehicle’s central locking the Fleet Canopy is easily locked via the OEM vehicle remote.

Door ajar alarm

n cab alarm sounds if ignition is activated when one or more doors are open.

Interior lighting

An internal LED light operates automatically on door opening or manually with a button located on each light.

Plug and play wiring

Two additional circuits are integrated to the vehicle, ready for work lights, beacons, and accessories.

Shop 3XM Gen2 Fleet Canopies
3XM Gen2 Fleet Canopy

Explore the features

Hover over the points to learn more.

Canopy lifecycle
Canopy vehicle

Lifecycle reuse

A simple change of brackets will have the canopy transferred to any brand of ute of similar size at the end of a lease.

Total internal cubic storage volume

3.2m³

Maximum static roof load capacity

300kg

Total weight added to the gross mass

212kg

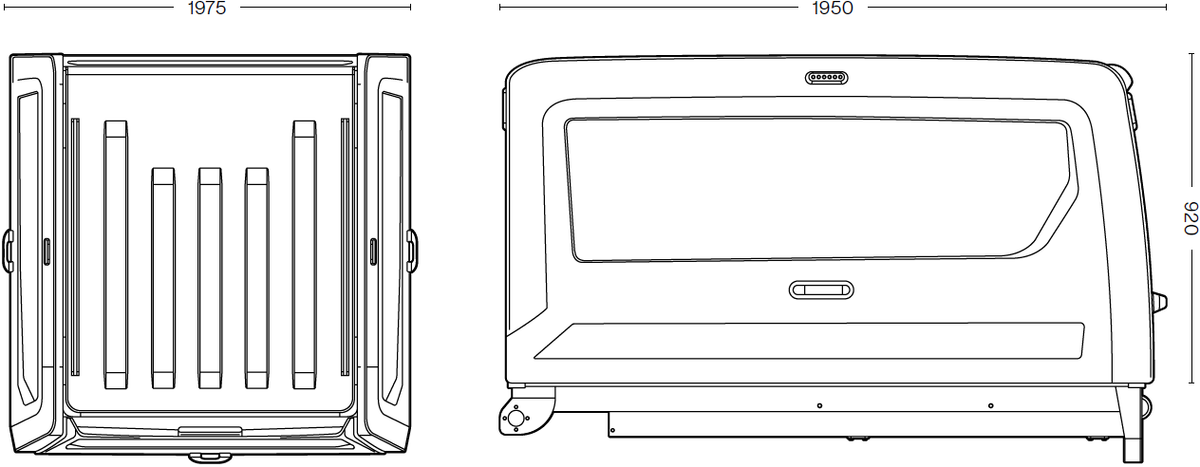

Dimensions

Use this

Dimensions (L×W×H) 1950 x 1975 x 920mm
Rear Door Access Height 780mm
Side Door Access Height 810mm
Floor Dimensions (L x W) 1860 x 1872mm
Total Height Including Towbar 1200mm
Towbar Height 280mm
Width with Doors Open 3225mm
Length with Door Open 2625mm
Height with Doors Open 1295mm
Fully Equipped Australia banner with Crown Canopy

need help configuring a canopy?

Submit your details and one of our team will be in contact to customise a canopy to your needs.

GET A QUOTE
